Sensors & Transducers > Inductive Proximity Sensors

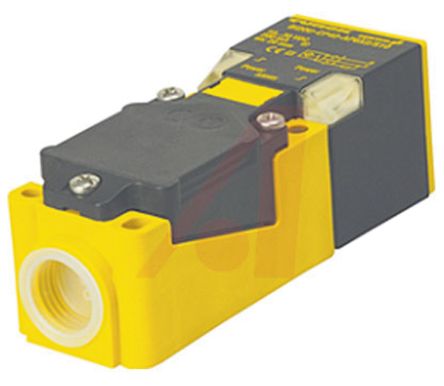

Turck PNP-NO/NC Inductive Sensor 114mm Length, 10 → 65 V dc supply voltage , IP68 Rating [BI15U-CP40-VP4X2]; 831-9933

by Turck
0₫
(Giá chưa VAT).
Mã kho: 8319933

Mã nhà sản xuất: BI15U-CP40-VP4X2

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Body Style Block
Output Type PNP-NO/NC
Detection Range 15 mm
Terminal Type M20 Gland
Supply Voltage 10 → 65 V dc
Length 114mm
Width 40mm
Depth 40mm
Maximum DC Voltage 65V
Mounting Type Flush Mount
Switching Current ≤200 mA
IP Rating IP68
Housing Material PBT
Reverse Polarity Protection Yes
Minimum Operating Temperature -30°C
Maximum Switching Frequency 250Hz
Short Circuit Overload Protection Yes
Shielding Shielded
Maximum Operating Temperature +85°C
