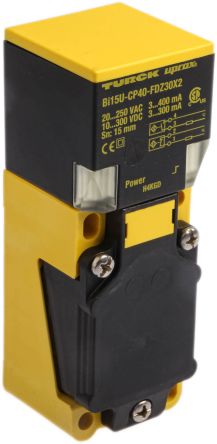

Turck NO/NC Inductive Sensor 114mm Length, 10 → 300 V dc, 20 → 250 V ac supply voltage , IP68 Rating [BI15U-CP40-FDZ30X2]; 385-1198
by Turck
0₫
Mã kho: 3851198
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | NO/NC |
| Detection Range | 15 mm |
| Terminal Type | M20 Gland |
| Supply Voltage | 10 → 300 V dc, 20 → 250 V ac |
| Length | 114mm |
| Width | 40mm |
| Depth | 40mm |
| Maximum DC Voltage | 300V |
| Maximum AC Voltage | 250V |
| Mounting Type | Flush Mount |
| Switching Current | 250 (ac) mA, 300 (dc) mA |
| IP Rating | IP68 |
| Housing Material | PBT |
| Maximum Operating Temperature | +85°C |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -30°C |
| Maximum Switching Frequency | 20Hz |
