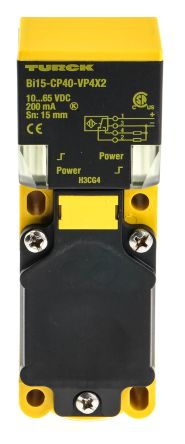

Turck PNP-NO/NC Inductive Sensor 114mm Length, 10 → 65 V dc supply voltage , IP67 Rating [BI15-CP40-VP4X2]; 831-9879
by Turck
0₫
Mã kho: 8319879
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO/NC |
| Detection Range | 15 mm |
| Supply Voltage | 10 → 65 V dc |
| Length | 114mm |
| Width | 40mm |
| Depth | 40mm |
| Maximum DC Voltage | 65V |
| Mounting Type | Flush Mount |
| Switching Current | ≤200 mA |
| IP Rating | IP67 |
| Housing Material | PBT |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 150Hz |
| Maximum Operating Temperature | +70°C |
| Shielding | Shielded |
| Minimum Operating Temperature | -25°C |
