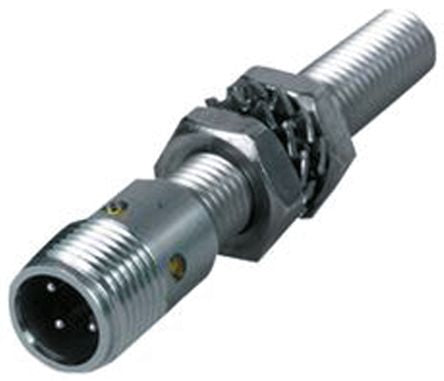

Turck, M12 x 1, NPN-NO Inductive Sensor 57mm Length, 10 → 30 V dc supply voltage , IP68 Rating [BI 2U-EG08-AN6X-H1341]; 832-0891
by Turck
0₫
Mã kho: 8320891
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Body Style | Barrel |
Thread Size | M12 x 1 |
Output Type | NPN-NO |
Detection Range | 2 mm |
Terminal Type | M12 - 4 Pin |
Supply Voltage | 10 → 30 V dc |
Length | 57mm |
Maximum DC Voltage | 30V |
Mounting Type | Flush Mount |
IP Rating | IP68 |
Switching Current | ≤150 mA |
Housing Material | Stainless Steel |
Short Circuit Overload Protection | Yes |
Reverse Polarity Protection | Yes |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -30°C |
Maximum Switching Frequency | 2kHz |
Shielding | Partial |
