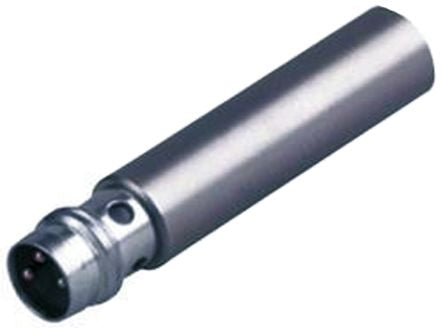

Turck, M8 x 1, PNP-NO Inductive Sensor 49mm Length, 10 → 30 V dc supply voltage , IP67 Rating [BI 2-EH6.5-AP6X-V1131]; 830-8658
by Turck
0₫
Mã kho: 8308658
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | PNP-NO |
| Detection Range | 2 mm |
| Terminal Type | M8 - 3 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 49mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| Switching Current | 150 mA |
| IP Rating | IP67 |
| Housing Material | Stainless Steel |
| Reverse Polarity Protection | Yes |
| Shielding | Partial |
| Maximum Switching Frequency | 3kHz |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
