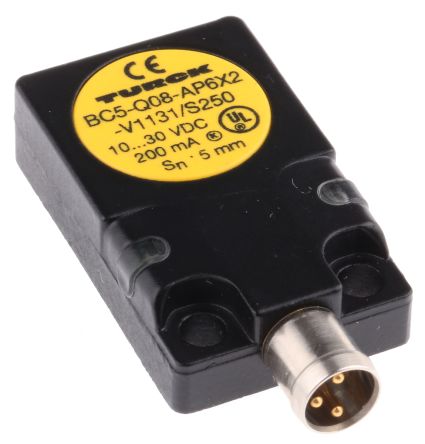

Turck Capacitive sensor 5 mm length 32mm PNP-NO supply voltage 10 → 30 V dc IP67 [BC5-Q08-AP6X2-V1131]; 443-8099
by Turck
0₫
Mã kho: 4438099
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO |
| Detection Range | 5 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M8 - 3 Pin |
| IP Rating | IP67 |
| Maximum DC Voltage | 30V |
| Mounting Style | Flush, Non Flush |
| Length | 32mm |
| Width | 20mm |
| Depth | 8mm |
| Switching Current | 200 mA |
| Housing Material | Metal |
| Switching Frequency | 100 Hz |
| Dimensions | 32 x 20 x 8 mm |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Short Circuit Overload Protection | Yes |
