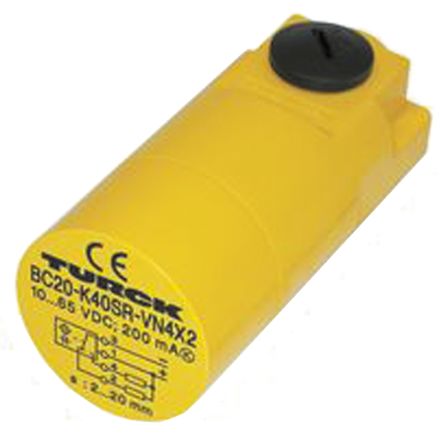

Turck Capacitive sensor 20 mm length 90mm NO/NC supply voltage 10 → 65 V dc IP67 [BC20-K40SR-VP4X2-H1141]; 837-7705
by Turck
0₫
Mã kho: 8377705
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | NO/NC |
| Detection Range | 20 mm |
| Supply Voltage | 10 → 65 V dc |
| Terminal Type | M16 Gland |
| IP Rating | IP67 |
| Maximum DC Voltage | 65V |
| Mounting Style | Flush |
| Length | 90mm |
| Width | 40mm |
| Switching Current | 200 mA |
| Switching Frequency | 100 Hz |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Short Circuit Overload Protection | Yes |
