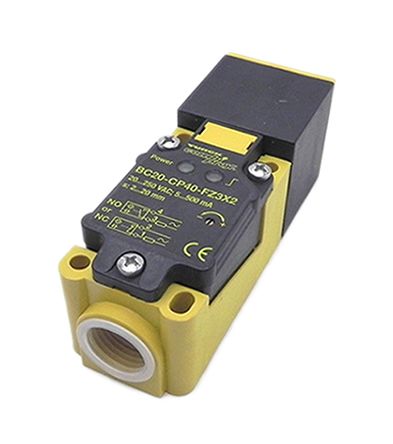

Turck Capacitive sensor 20 mm length 114mm NO/NC supply voltage 20 → 250 V ac IP67 [BC20-CP40-FZ3X2]; 837-7686
by Turck
0₫
Mã kho: 8377686
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Thread Size | 1/2-14 NPT |
| Output Type | NO/NC |
| Detection Range | 20 mm |
| Supply Voltage | 20 → 250 V ac |
| Terminal Type | 1/2-14NPT Connector |
| IP Rating | IP67 |
| Mounting Style | Flush |
| Length | 114mm |
| Width | 40mm |
| Depth | 40mm |
| Maximum AC Voltage | 250V |
| Switching Current | ≤500 mA |
| Minimum Operating Temperature | -25°C |
| Shielding | Partial |
| Dimensions | 114 x 40 x 40 mm |
| Switching Frequency | 20 Hz |
| Housing Material | Plastic |
| Reverse Polarity Protection | No |
| Maximum Operating Temperature | +70°C |
