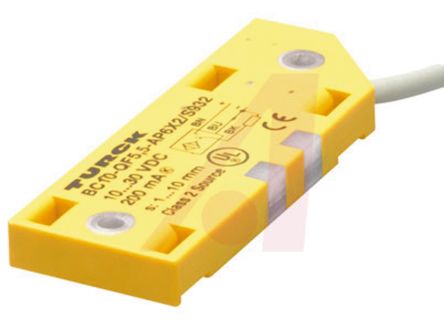

Turck Capacitive sensor 10 mm length 50.3mm PNP-NO supply voltage 10 → 30 V dc IP67 [BC10-QF5.5-AP6X2]; 837-7648
by Turck
0₫
Mã kho: 8377648
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO |
| Detection Range | 10 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | Cable |
| IP Rating | IP67 |
| Maximum DC Voltage | 30V |
| Mounting Style | Flush |
| Length | 50.3mm |
| Width | 20.3mm |
| Depth | 5.5mm |
| Switching Current | ≤200 mA |
| Housing Material | Polypropylene Plastic |
| Minimum Operating Temperature | -25°C |
| Shielding | Shielded |
| Switching Frequency | 100 Hz |
| Dimensions | 50.3 x 20.3 x 5.5 mm |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +70°C |
