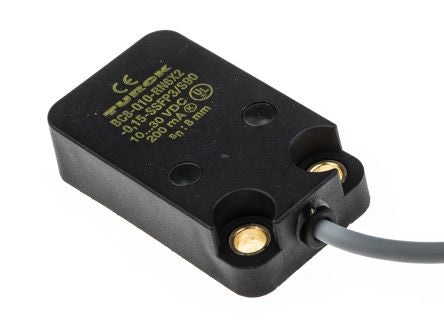

Turck Capacitive sensor 8 mm length 42mm NPN-NC supply voltage 10 → 30 V dc [BC 8-Q10-RN6X2-0.15M-SSFP3/S90]; 837-7601
by Turck
0₫
Mã kho: 8377601
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | NPN-NC |
| Detection Range | 8 mm |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | Cable, M12 - 4 Pin with Cable |
| Maximum DC Voltage | 30V |
| Mounting Style | Flush |
| Length | 42mm |
| Width | 25mm |
| Depth | 10.8mm |
| Switching Current | 200 mA |
| Housing Material | PBT |
| Short Circuit Overload Protection | Yes |
| Dimensions | 42 x 25 x 10.8 mm |
| Reverse Polarity Protection | No |
| Shielding | Partial |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
