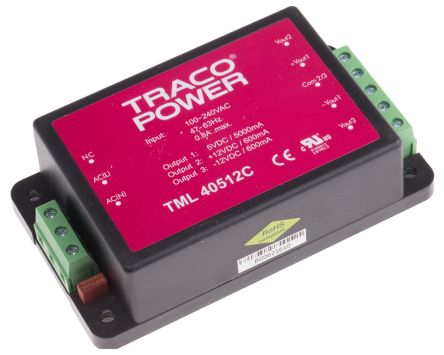

TRACOPOWER, 40W Embedded Switch Mode Power Supply SMPS, 5/±12V dc, Encapsulated [TML 40512C]; 706-6195
by TRACOPOWER
0₫
Mã kho: 7066195
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12 V dc, 5 V dc |
| Output Current | 5 A, 600 mA |
| Power Rating | 40W |
| Number of Outputs | 3 |
| Input Voltage | 90 → 264 V ac, 100 → 375 V dc |
| Mounting Type | Chassis Mount |
| Package Type | Encapsulated |
| Length | 112mm |
| Width | 63.7mm |
| Depth | 32.5mm |
| Weight | 325g |
| Efficiency | 75 → 84% |
| Maximum Temperature | +60°C |
| Minimum Temperature | -40°C |
