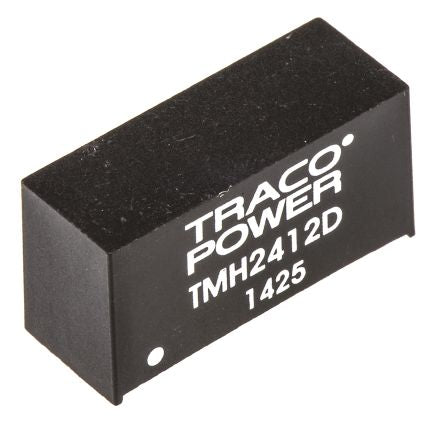

TRACOPOWER TMH 2W Isolated DC-DC Converter Through Hole, Voltage in 21.6 → 26.4 V dc, Voltage out ±12V dc [TMH 2412D]; 161-6710
by TRACOPOWER
0₫
Mã kho: 1616710
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1kV dc |
| Power Rating | 2W |
| Output Current | ±80mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.81 |
| Package | SIP |
| Load Regulation | ±10% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Depth | 10.2mm |
| Series | TMH |
| Length | 19.5mm |
