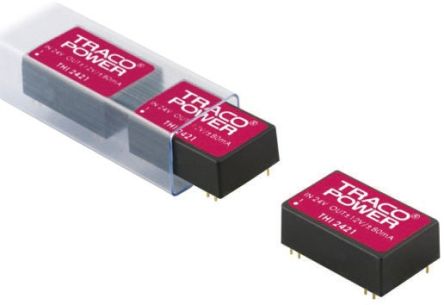

TRACOPOWER THI 2W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out 5V dc [THI 0511]; 699-2722
by TRACOPOWER
0₫
Mã kho: 6992722
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 2.5kV dc |
| Power Rating | 2W |
| Output Current | 400mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package | DIP 24, PDIP |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +75°C |
| Series | THI |
| Length | 32mm |
| Depth | 10mm |
