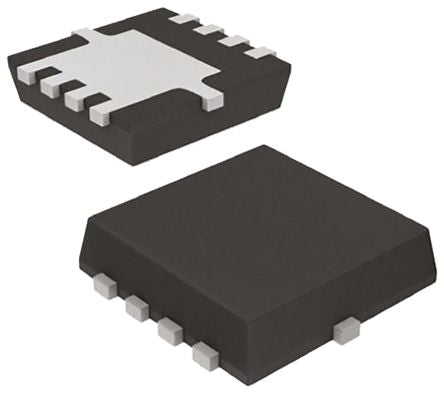

TPN11003NL,LQ(S N-Channel MOSFET, 31 A, 30 V U-MOSVIII-H, 8-Pin TSON Toshiba [TPN11003NL,LQ(S]; 133-2811
by Toshiba
0₫
Mã kho: 1332811
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 31 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | TSON |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 16 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.3V |
| Minimum Gate Threshold Voltage | 1.3V |
| Maximum Power Dissipation | 19 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Series | U-MOSVIII-H |
| Height | 0.85mm |
| Width | 3.1mm |
| Typical Gate Charge @ Vgs | 7.5 nC @ 10 V |
| Length | 3.1mm |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
