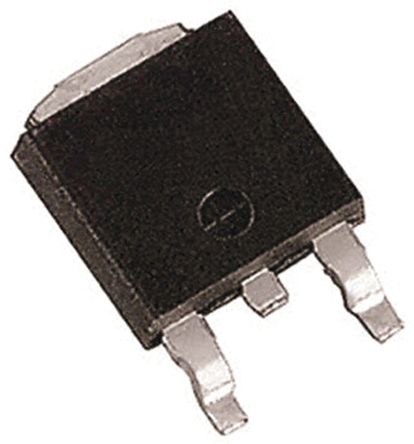

TK100S04N1L N-Channel MOSFET, 100 A, 40 V, 3-Pin DPAK Toshiba [TK100S04N1L]; 171-2416
by Toshiba
0₫
Mã kho: 1712416
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 100 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | DPAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 4.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 180 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Forward Diode Voltage | 1.2V |
| Height | 2.3mm |
| Typical Gate Charge @ Vgs | 76 nC @ 10 V |
| Width | 7mm |
| Length | 6.5mm |
| Automotive Standard | AEC-Q101 |
