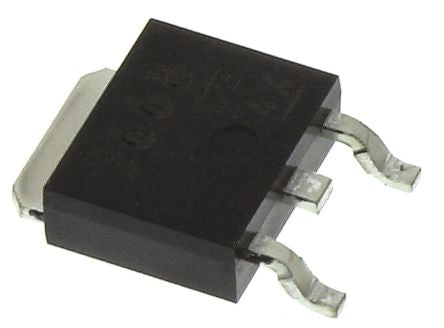

2SJ668(TE16L,NQ) P-Channel MOSFET, 5 A, 60 V, 3-Pin PW Mold Toshiba [2SJ668(TE16L,NQ)]; 415-174
by Toshiba
0₫
Mã kho: 415174
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.208333333333333 |
| Maximum Drain Source Voltage | 60 V |
| Package Type | PW Mold |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 170 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 20 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 5.5mm |
| Typical Gate Charge @ Vgs | 15 nC @ 10 V |
| Height | 2.3mm |
| Maximum Operating Temperature | +150 °C |
| Length | 6.5mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
