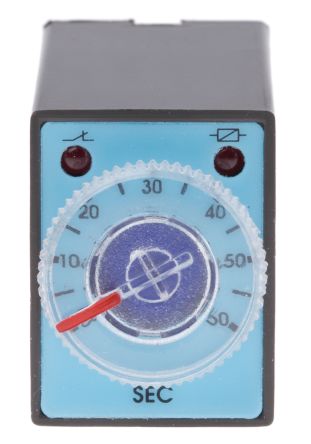

Tempatron ON Delay Energise Single Timer Relay, 14-Pin Connector, 3 → 60 s, 4P-NO/NC, 4 Contacts, 4PDT, 110 V ac [MT4L60S110VAC]; 341-165
by Tempatron
0₫
Mã kho: 341165
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 110 V ac |
| Time Range | 3 → 60 s |
| Mode of Operation | ON Delay Energise |
| Mounting Type | Plug In |
| Number of Timer Functions | Single |
| Number of Contacts | 4 |
| Time Increment | Seconds |
| Power Supply | External |
| Contact Configuration | 4P-NO/NC |
| Current Maximum | 0.125 |
| Terminal Type | 14-Pin Connector |
| Maximum Voltage | 30 V dc, 240 V ac |
| Width | 21.8mm |
| Length | 28.2mm |
| Time Delay | 100 (Reset) ms |
| Contact Material | Silver |
| Maximum Operating Temperature | +60°C |
| Switch Configuration | 4PDT |
| Depth | 68.5mm |
| Minimum Operating Temperature | -10°C |
