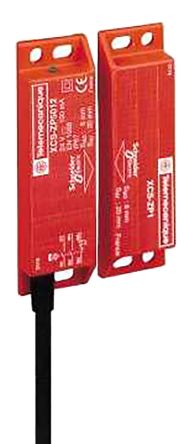

Preventa XCSDMP Magnetic Safety Non Contact Switch, Plastic, 24 V dc [XCSDMP501L01M12]; 133-0079
0₫
Mã kho: 1330079
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 24 V dc |
Safety Contacts | 1NC/2NO |
Housing Material | Plastic |
Connection Type | M12 |
Switch Type | Rectangular |
Range | Preventa |
Terminal Type | M12 Conduit |
Series | XCSDMP |
Switching Distance | 8 (Operating) mm, 20 (Tripping) mm |
IP Rating | IP67 |
Supply Current | ≤100 A |
Actuator Included | Yes |
Sensor Principle | Magnetic |
Length | 25mm |
Standards Met | BG, CSA, CSA C22.2 No. 14, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, UL, UL 508 |
Number of Approach Directions | 3 |
Dimensions | 25 x 13 x 88 mm |
Actuator Type | Coded |
Depth | 88mm |
Width | 13mm |
Housing Colour | Red |
Safety Category | Category 4 (EN/ISO 13849-1), Category PL e (EN/ISO 13849-1), Category SIL 3 (EN/IEC 61508) |
