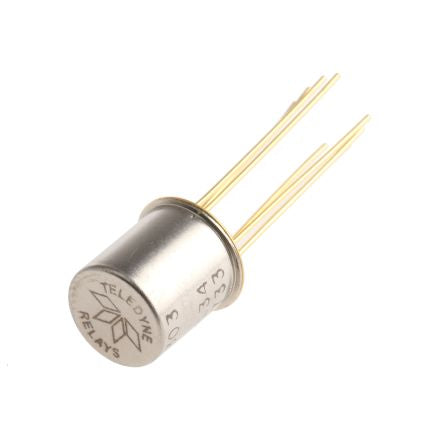

DPDT PCB Mount, RF Relay, 3GHz 5V dc 9.4mm [RF303-5]; 758-2521
by Teledyne
0₫
Mã kho: 7582521
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Coil Frequency | 3GHz |
| Coil Resistance | 100 Ω |
| Contact Resistance | 150 mΩ |
| Contact Configuration | DPDT |
| Coil Voltage | 5 V dc |
| Mounting Type | PCB Mount |
| Contact Voltage | 28V dc |
| Coil Power | 200mW |
| Minimum Operating Temperature | -55°C |
| Diameter | 9.4mm |
| Life | 10000000 cycles |
| Maximum Operating Temperature | 85°C |
| Height | 9.78mm |
| Operating Time Including Bounce | 6ms |
| Operating Temperature Range | -55 → +85°C |
| Dimensions | 9.4 x 9.78mm |
