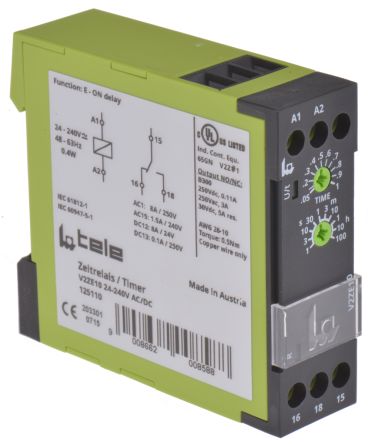

Tele Interval Single Timer Relay, Screw [V2ZE10 24-240V AC/DC]; 798-3511
by Tele
0₫
Mã kho: 7983511
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 → 240 V ac/dc |
| Time Range | 0.05 → 1 s, 0.15 → 3 s, 0.5 → 10 h, 0.5 → 10 min, 0.5 → 10 s, 1.5 → 30 s, 3 → 60 min, 3 → 60 s, 5 → 100 h, 9 → 180 s |
| Mode of Operation | Interval |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Single |
| Number of Contacts | 1 |
| Series | V2ZE10 |
| Power Supply | Internal |
| Contact Configuration | SPDT |
| Current Maximum | 0.1 (DC-13) A, 1.5 (AC-15) A, 8 (AC-1) A, 8 (DC-12) A |
| Terminal Type | Screw |
| Time Delay | > 100 ms |
| Width | 22.5mm |
| Minimum Operating Temperature | -25°C |
| Length | 76mm |
| Depth | 67mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | +60°C |
