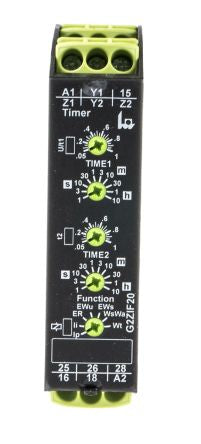

Tele Multi Function Timer Relay, 150 ms → 10 h, DPDT, 2 Contacts, DPDT, 24 → 240 V ac/dc [G2ZIF20 24-240V AC/DC]; 160-240
by Tele
0₫
Mã kho: 160240
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 → 240 V ac/dc |
| Time Range | 150 ms → 10 h |
| Mode of Operation | Asymmetrical Recycler with Pulse Start |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Series | G2ZIF20 |
| Time Increment | Hours, Milliseconds, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | DPDT |
| Current Maximum | 0.208333333333333 |
| Maximum Voltage | 250 V ac |
| Time Delay | 500 (Reset) ms |
| Depth | 108mm |
| Length | 90mm |
| Width | 22.5mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +55°C |
| Switch Configuration | DPDT |
