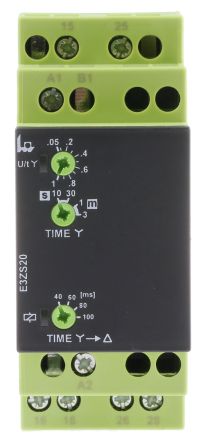

Tele Star Delta Start Up Single Timer Relay, 40 ms → 3 min, DPDT, 2 Contacts, DPDT, 12 → 240 V ac/dc [E3ZS20 12-240V AC/DC]; 160-212
by Tele
0₫
Mã kho: 160212
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 12 → 240 V ac/dc |
| Time Range | 40 ms → 3 min |
| Mode of Operation | Star Delta Start Up |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Single |
| Number of Contacts | 2 |
| Series | E3ZS20 |
| Time Increment | Milliseconds, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | DPDT |
| Current Maximum | 0.333333333333333 |
| Maximum Voltage | 250 V ac |
| Minimum Operating Temperature | -25°C |
| Depth | 65mm |
| Length | 87mm |
| Width | 35mm |
| Time Delay | 100 (Reset) ms |
| Switch Configuration | DPDT |
| Maximum Operating Temperature | +55°C |
