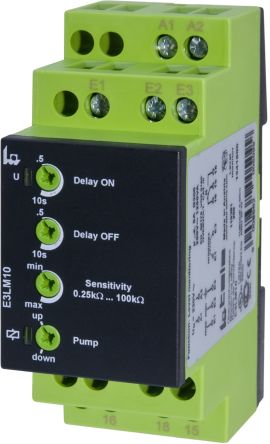

Tele Liquid Level Monitoring Relay With SPDT Contacts, 1 Phase, 230 V ac [E3LM10 230V AC]; 123-9720
by Tele
0₫
Mã kho: 1239720
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Liquid Level |
| Supply Voltage | 230 V ac |
| Contact Configuration | SPDT |
| Electrical Phase | 1 |
| Time Delay | 0.5 → 10 s |
| Maximum Operating Temperature | +55°C |
| Height | 87mm |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Operating Temperature Range | -25 → +55 °C |
| Number of Poles | 1 |
| Width | 65mm |
| Length | 35mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 35 x 65 x 87 mm |
| Series | ENYA |
| Standards Met | EN 60715, IEC 60664-1, IEC 60668-1, IEC 60721-3-3, IEC 60947-5-1 |
