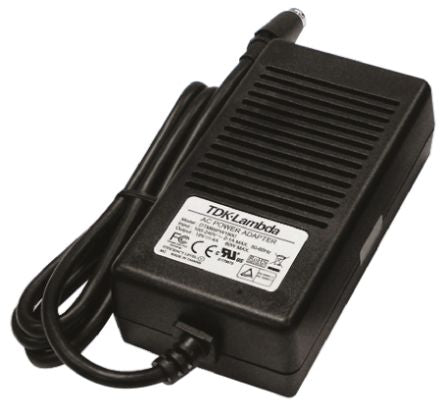

TDK-Lambda 36V dc Power Supply, 1.8A [DTM65PW360C]; 764-9107
by TDK-Lambda
0₫
Mã kho: 7649107
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 90 → 264 V ac |
| Output Voltage Rating | 36 V dc |
| Output Current Range | 1.8A |
| Input Connector | IEC 320-C14 |
| Output Connection Type | KPPx-4P |
| Number of Outputs | 1 |
| Medical Approved | Yes |
| Load Regulation Range | ±3% |
| Minimum Temperature | 0°C |
| Energy Efficiency Level | V |
| Overall Dimensions | 132 x 69 x 40mm |
| Operating Temperature Range | 0 → +50 °C |
| Weight | 460g |
| Overall Length | 132mm |
| Overall Width | 69mm |
| Maximum Temperature | +50°C |
| Cable Length | 1050mm |
| Overall Depth | 40mm |
| Standards Met | ErP Compliant |
