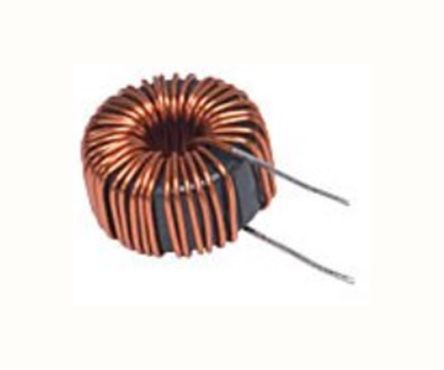

Tamura 200 μH ±25% Ferrite Coil Inductor, 20A Idc, 16mΩ Rdc NAC-20 [NAC-20-0201]; 154-1201
by Tamura
0₫
Mã kho: 1541201
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 200 μH |
| Maximum DC Current | 20A |
| Mounting Type | Through Hole |
| Maximum DC Resistance | 16mΩ |
| Tolerance | ±25% |
| Diameter | 57mm |
| Height | 35mm |
| Dimensions | 57 (Dia.) x 35mm |
| Core Material | Ferrite |
| Series | NAC-20 |
| Lead Diameter | 4 x 1.1mm |
| Terminal Type | Wire |
