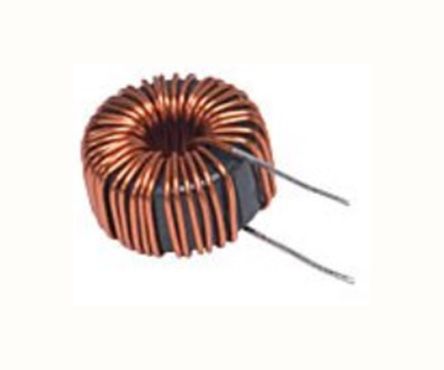

Tamura 13 μH ±25% Ferrite Coil Inductor, 8A Idc, 10mΩ Rdc GLA-08 [GLA-08-0013]; 154-1207
by Tamura
0₫
Mã kho: 1541207
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 13 μH |
| Maximum DC Current | 8A |
| Mounting Type | Through Hole |
| Maximum DC Resistance | 10mΩ |
| Tolerance | ±25% |
| Diameter | 22mm |
| Height | 12mm |
| Dimensions | 22 (Dia.) x 12mm |
| Core Material | Ferrite |
| Series | GLA-08 |
| Lead Diameter | 2 x 0.85mm |
| Terminal Type | Wire |
