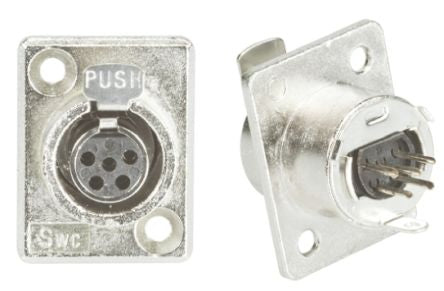

![Switchcraft TY5F 453741](http://nguyenxuong.com/cdn/shop/products/R0453741-01_444x291.jpg?v=1594063310)
Switchcraft TY Series, Panel Mount Miniature Connector Socket, 5 Way, 4A [TY5F]; 453-741
by Switchcraft
0₫
Mã kho: 453741
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 5 |
Gender | Female |
Mounting Type | Panel Mount |
Body Orientation | Straight |
Colour | Natural |
Contact Plating | Silver |
Housing Material | Brass |
Termination Method | Solder |
Current Rating | 4A |
Voltage Rating | 125 V ac |
Contact Material | Beryllium |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +85°C |
