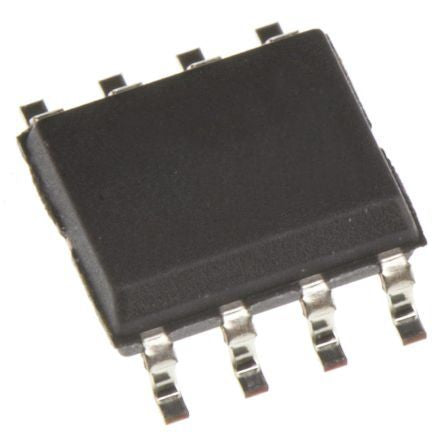

TSX9292IYDT, Op Amps [TSX9292IYDT]; 192-4669
0₫
Mã kho: 1924669
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Operational Amplifier |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 4 → 16 V |
| Typical Gain Bandwidth Product | 16MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 27V/µs |
| Maximum Operating Frequency | 100 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Height | 1.5mm |
| Offset Voltage | 5mV |
| Output Current | 21 mA |
| Dimensions | 5 x 4 x 1.5mm |
| Input Offset Current | 200pA |
| Typical Voltage Gain | 117 dB |
| Input Voltage Range | 4 → 16 V |
| Width | 4mm |
| Maximum Input Voltage | 16 V |
| Length | 5mm |
| Typical Input Voltage Noise Density | 17.9nV/√Hz |
| Minimum Input Voltage | 4 V |
