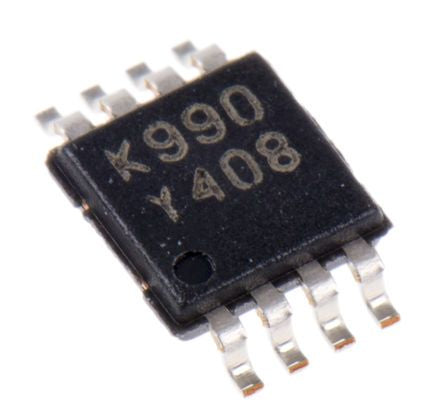

TSX712IYST STMicroelectronics, Precision, Op Amp, RRIO, 2.7MHz, 8-Pin MiniSOIC [TSX712IYST]; 111-6496
0₫
Mã kho: 1116496
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Precision |
| Mounting Type | Surface Mount |
| Package Type | MiniSOIC |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Gain Bandwidth Product | 2.7MHz |
| Typical Slew Rate | 1.4V/µs |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage | 2.7 V |
| Input Offset Current | 200pA |
| Typical Input Voltage Noise Density | 22nV/√Hz |
| Length | 3.2mm |
| Output Current | 40 (Sink) mA, 69 (Source) mA |
| Offset Voltage | 450µV |
| Dimensions | 3.2 x 3.1 x 0.95mm |
| Typical Voltage Gain | 149 dB |
| Input Voltage Range | 2.7 → 16 V |
| Rail to Rail | Rail to Rail Input/Output |
| Maximum Input Voltage | 16 V |
| Height | 0.95mm |
| Width | 3.1mm |
