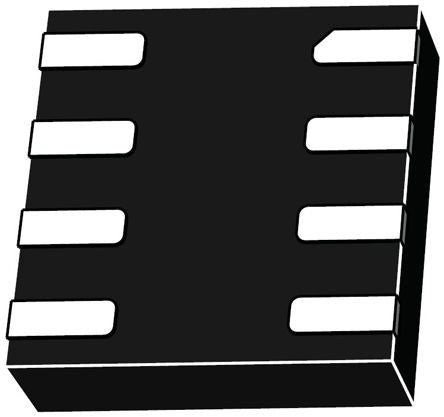

TSX562IQ2T STMicroelectronics, Low Power, Op Amp, RRIO, 900kHz, 3 → 16 V, 8-Pin DFN [TSX562IQ2T]; 168-8085
0₫
Mã kho: 1688085
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 3 → 16 V |
| Typical Gain Bandwidth Product | 900kHz |
| Typical Slew Rate | 1.1V/µs |
| Maximum Operating Frequency | 10 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 2mm |
| Rail to Rail | Rail to Rail Input/Output |
| Width | 2mm |
| Typical Voltage Gain | 85 dB |
| Typical Input Voltage Noise Density | 55nV/√Hz |
| Dimensions | 2 x 2 x 0.75mm |
| Height | 0.75mm |
