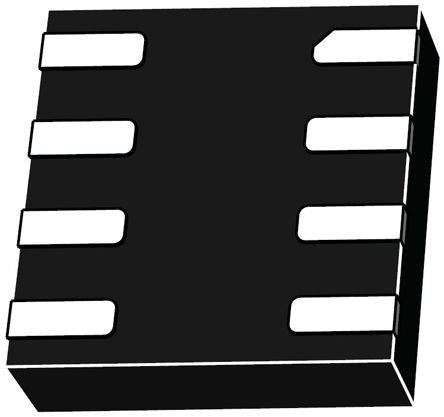

TSV912IQ2T STMicroelectronics, High Speed, Op Amp, RRIO, 8MHz, 2.5 → 5.5 V, 8-Pin DFN [TSV912IQ2T]; 165-5546
0₫
Mã kho: 1655546
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | High Speed |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 2.5 → 5.5 V |
| Typical Gain Bandwidth Product | 8MHz |
| Typical Slew Rate | 4.5V/µs |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain | 91 dB |
| Input Offset Current | 100pA |
| Dimensions | 2.15 x 2.15 x 0.55mm |
| Height | 0.55mm |
| Width | 2.15mm |
| Input Voltage Range | 2.5 → 5.5 V |
| Rail to Rail | Rail to Rail Input/Output |
| Typical Input Voltage Noise Density | 27nV/√Hz |
| Minimum Input Voltage | 2.5 V |
| Length | 2.15mm |
| Maximum Input Voltage | 5.5 V |
| Offset Voltage | 7.5mV |
| Output Current | 35 mA |
