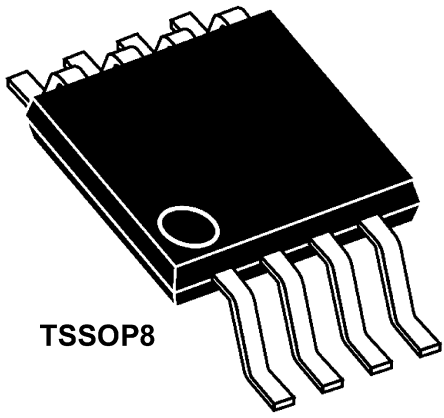

TSV358IPT STMicroelectronics,, Op Amp, RRIO, 1.4MHz, 3 V, 5 V, 8-Pin TSSOP [TSV358IPT]; 624-8006
0₫
Mã kho: 6248006
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 3 V, 5 V |
| Typical Gain Bandwidth Product | 1.4MHz |
| Typical Slew Rate | 0.6V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 3 x 4.4 x 1mm |
| Typical Voltage Gain | 92 dB |
| Rail to Rail | Rail to Rail Input/Output |
| Typical Input Voltage Noise Density | 27nV/√Hz |
| Height | 1mm |
| Width | 4.4mm |
| Length | 3mm |
