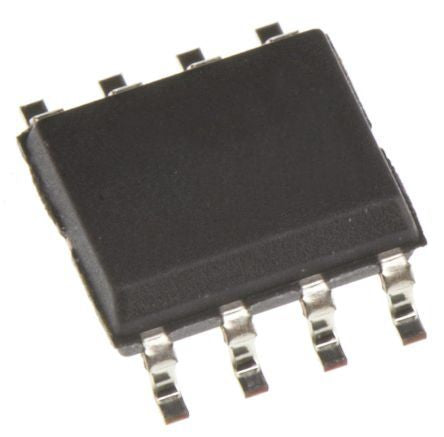

STMicroelectronics, TL082BIYDT [TL082BIYDT]; 189-1926
0₫
Mã kho: 1891926
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Dual Operational |
| Mounting Type | Surface Mount |
| Package Type | SO |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 6 → 36 V |
| Typical Gain Bandwidth Product | 4MHz |
| Output Type | Swing |
| Typical Slew Rate | 16V/µs |
| Maximum Operating Frequency | 100 kHz |
| Maximum Operating Temperature | +105 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Input Voltage Noise Density | 15nV/√Hz |
| Input Offset Current | 4nA |
| Width | 4mm |
| Input Voltage Range | 6 → 36 V |
| Typical Voltage Gain | 200 V/mV |
| Offset Voltage | 5mV |
| Output Current | 60 mA |
| Dimensions | 5 x 4 x 1.5mm |
| Length | 5mm |
| Height | 1.5mm |
| Minimum Input Voltage | 6 V |
| Maximum Input Voltage | 36 V |
