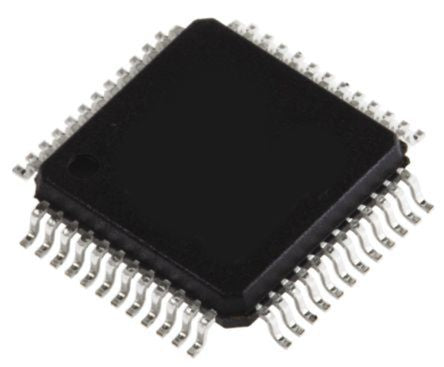

STMicroelectronics STM32L081CBT6, 32bit ARM Cortex M0+ Microcontroller, 32MHz, 192 kB Flash, 48-Pin LQFP [STM32L081CBT6]; 175-0696
0₫
Mã kho: 1750696
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32L0 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M0+ |
| Data Bus Width | 32bit |
| Program Memory Size | 192 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 20 kB |
| Number of PWM Units | 2 |
| ADC Channels | 13 |
| Number of SPI Channels | 6 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of UART Channels | 1 |
| Number of Timers | 6 |
| Program Memory Type | Flash |
| Number of I2C Channels | 3 |
| Pulse Width Modulation | 2 (4 x 16 bit) |
| Dimensions | 7.2 x 7.2 x 1.45mm |
| Timers | 1 (1 x 16 bit), 1 (2 x 16 bit), 2 (2 x 16 bit), 2 (4 x 16 bit) |
| Number of USART Channels | 4 |
| Width | 7.2mm |
| PWM Channels | 4 |
| Height | 1.45mm |
| Timer Resolution | 16bit |
| Length | 7.2mm |
| ADCs | 1 (13 x 12 bit) |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
