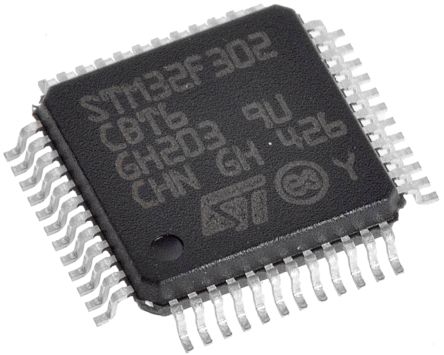

STMicroelectronics STM32F302CBT6, 32bit ARM Cortex M4 MCU, 72MHz, 128 kB Flash, 48-Pin LQFP [STM32F302CBT6]; 810-7641
0₫
Mã kho: 8107641
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 72MHz |
| RAM Size | 32 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 7.2mm |
| ADCs | 1-ch x 32-bit, 7-ch x 16-bit |
| Pulse Width Modulation | 1 (6 x 16 bit) |
| Program Memory Type | Flash |
| Number of Timers | 11 |
| Number of I2C Channels | 2 |
| Number of CAN Channels | 1 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 16 bit, 32 bit |
| Dimensions | 7.2 x 7.2 x 1.45mm |
| Timers | 1 x 32 bit, 2 x 16 bit |
| Number of USART Channels | 3 |
| Width | 7.2mm |
| PWM Channels | 6 |
| Timer Resolution | 16 bit, 32 bit |
| Height | 1.45mm |
