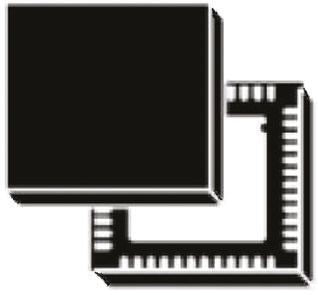

STMicroelectronics STM32F103CBU6, 32bit ARM Microcontroller, 72MHz, 128 kB Flash, 48-Pin UFQFPN [STM32F103CBU6]; 795-8388
0₫
Mã kho: 7958388
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | UFQFPN |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 72MHz |
| RAM Size | 20 kB |
| USB Channels | 1 |
| Number of PWM Units | 1(4 x 16 bit) |
| ADC Channels | 10 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3.6 V |
| Number of I2C Channels | 2 |
| Number of Timers | 7 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| ADC Resolution | 12bit |
| Number of CAN Channels | 1 |
| Number of ADC Units | 2 |
| Instruction Set Architecture | ARM |
| Length | 7.1mm |
| Pulse Width Modulation | 1(4 x 16 bit) |
| Program Memory Type | Flash |
| Number of USART Channels | 3 |
| ADCs | 2(10 x 12 bit) |
| Timer Resolution | 16 bit, 24 bit |
| Height | 0.5mm |
| PWM Channels | 1 |
| Width | 7.1mm |
| Timers | 1 x 24 bit, 6(4 x 16bit) |
| Dimensions | 7.1 x 7.1 x 0.5mm |
