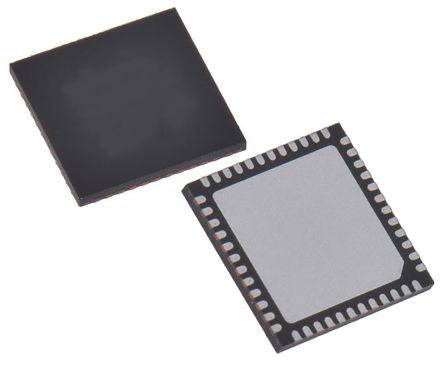

STM32F058C8U6, 32BIT MICROCONTROLLER [STM32F058C8U6]; 192-3593
0₫
Mã kho: 1923593
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32 |
| Package Type | UFQFPN |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 8 kB |
| ADC Channels | 13 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 V |
| Length | 7.1mm |
| ADCs | 1 (13 x 12 bit) |
| Number of Timers | 4 |
| Number of I2C Channels | 2 |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Dimensions | 7.1 x 7.1 x 0.55mm |
| Minimum Operating Temperature | -40 °C |
| Timers | 1 (1 x 16 bit), 1 (1 x 32 bit), 1 (5 x 16 bit) |
| Number of USART Channels | 2 |
| ADC Resolution | 12bit |
| Width | 7.1mm |
| Height | 0.55mm |
| Timer Resolution | 16 bit, 32 bit |
| Maximum Operating Temperature | +85 °C |
