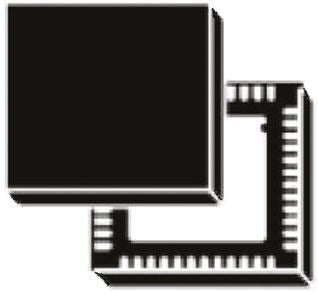

STMicroelectronics STM32F051C8U6, 32bit ARM Cortex M0 Microcontroller, 48MHz, 64 kB Flash, 48-Pin UFQFPN [STM32F051C8U6]; 792-5931
0₫
Mã kho: 7925931
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | UFQFPN |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 8 kB |
| Number of PWM Units | 1 |
| ADC Channels | 13 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3.6 V |
| Number of I2C Channels | 1 |
| ADCs | 1(13 x 12 bit) |
| Maximum Operating Temperature | +85 °C |
| Timer Resolution | 16 bit, 32 bit |
| Number of ADC Units | 1 |
| Number of USART Channels | 2 |
| Length | 7.1mm |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Width | 7.1mm |
| Timers | 1 x 32 bit, 7 x 16 bit |
| Dimensions | 7.1 x 7.1 x 0.55mm |
| Pulse Width Modulation | 1(6 x 16 bit) |
| Program Memory Type | Flash |
| PWM Channels | 6 |
| Number of LIN Channels | 1 |
| Height | 0.55mm |
| Number of Timers | 8 |
