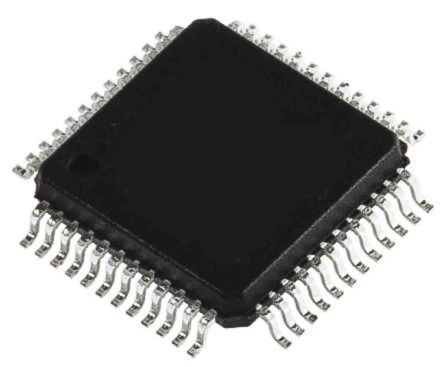

STM32F030CCT6TR, 32BIT MICROCONTROLLER [STM32F030CCT6TR]; 192-1020
0₫
Mã kho: 1921020
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 32 kB |
| ADC Channels | 12 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.4 → 3.6 V |
| Number of I2C Channels | 2 |
| Dimensions | 7.2 x 7.2 x 1.45mm |
| Minimum Operating Temperature | -40 °C |
| Number of USART Channels | 6 |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Number of Timers | 3 |
| ADCs | 1 (12 x 12 bit) |
| Length | 7.2mm |
| ADC Resolution | 12bit |
| Height | 1.45mm |
| Timer Resolution | 16bit |
| Width | 7.2mm |
