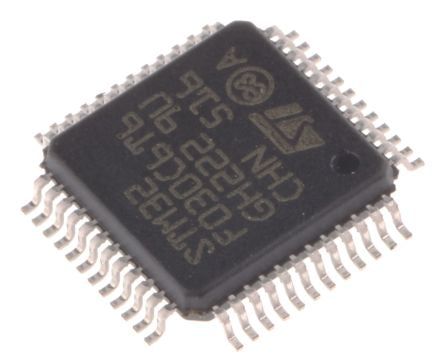

STMicroelectronics STM32F030C6T6, 32bit ARM Cortex M0 Microcontroller, 48MHz, 32 kB Flash, 48-Pin LQFP [STM32F030C6T6]; 919-6264
0₫
Mã kho: 9196264
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3.6 V |
| Number of I2C Channels | 1 |
| Number of Timers | 5 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1(6 x 16 bit) |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 7.2mm |
| ADCs | 1(12 x 12 bit) |
| Timer Resolution | 16bit |
| Height | 1.45mm |
| PWM Channels | 6 |
| Width | 7.2mm |
| Number of USART Channels | 1 |
| Timers | 5 x 16 bit |
| Dimensions | 7.2 x 7.2 x 1.45mm |
| ADC Resolution | 12bit |
