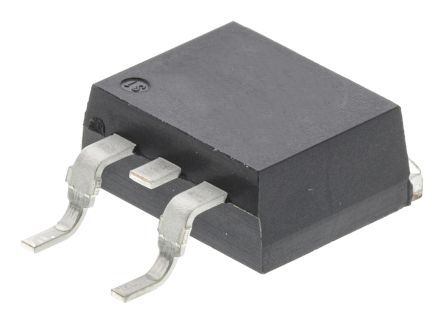

STMicroelectronics, STB13007DT4 [STB13007DT4]; 188-8282
0₫
Mã kho: 1888282
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 8 A, 16 (Peak) A |
| Maximum Collector Emitter Voltage | 700 V |
| Package Type | D2PAK |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 80 W |
| Minimum DC Current Gain | 8 |
| Transistor Configuration | Single |
| Maximum Emitter Base Voltage | 9 V |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Base Emitter Saturation Voltage | 1.6 V |
| Width | 9.35mm |
| Maximum Operating Temperature | +150 °C |
| Height | 4.37mm |
| Dimensions | 10.4 x 9.35 x 4.37mm |
| Length | 10.4mm |
| Maximum Collector Emitter Saturation Voltage | 3 V |
