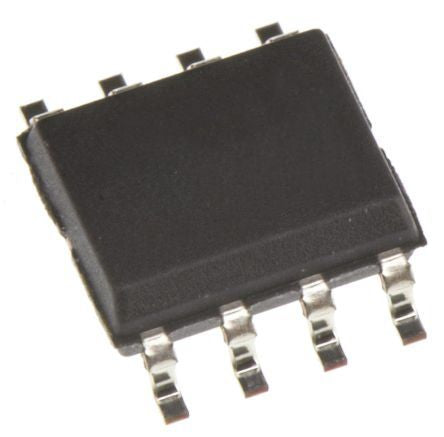

STMicroelectronics, LMV822IDT [LMV822IDT]; 189-1975
0₫
Mã kho: 1891975
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SO |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 2.5 → 5.5 V |
| Typical Gain Bandwidth Product | 5.5MHz |
| Output Type | Rail to Rail, Swing |
| Typical Slew Rate | 1.7V/µs |
| Maximum Operating Frequency | 10 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Input Offset Current | 50nA |
| Input Voltage Range | 2.5 → 5.5 V |
| Dimensions | 5 x 4 x 1.5mm |
| Typical Voltage Gain | 100 dB |
| Output Current | 43 (Sink) mA, 70 (Source) mA |
| Offset Voltage | 4mV |
| Width | 4mm |
| Height | 1.5mm |
| Length | 5mm |
| Rail to Rail | Rail to Rail Output |
| Maximum Input Voltage | 5.5 V |
| Minimum Input Voltage | 2.5 V |
| Typical Input Voltage Noise Density | 16nV/√Hz |
