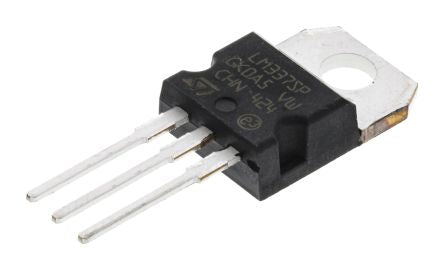

STMicroelectronics LM337SP Negative Voltage Regulator, 1.5A, Adjustable, -1.2 → -37 V 3-Pin, TO-220 [LM337SP]; 795-9066
0₫
Mã kho: 7959066
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | -1.2 → -37 V |
| Maximum Output Current | 1.5A |
| Package Type | TO-220 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Maximum Input Voltage | 40 V |
| Pin Count | 3 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Polarity | Negative |
| Length | 10.2mm |
| Height | 15.75mm |
| Series | LM337 |
| Width | 4.6mm |
| Dimensions | 10.2 x 4.6 x 15.75mm |
| Load Regulation | 50 mV |
| Line Regulation | 0.04 %/V |
| Reference Voltage | -1.25V |
| Quiescent Current | 100µA |
