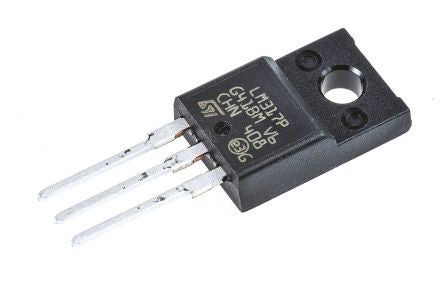

STMicroelectronics LM317P Linear Voltage Regulator, 1.5A, Adjustable, 1.2 → 37 V 3-Pin, TO-220FP [LM317P]; 168-6586
0₫
Mã kho: 1686586
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.2 → 37 V |
| Maximum Output Current | 1.5A |
| Package Type | TO-220FP |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Minimum Input Voltage | 3 V |
| Pin Count | 3 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Dimensions | 10.4 x 4.6 x 9.3mm |
| Width | 4.6mm |
| Height | 9.3mm |
| Load Regulation | 0.005 |
| Series | LM317 |
| Line Regulation | 0.04 %/V |
| Length | 10.4mm |
| Reference Voltage | 1.3V |
