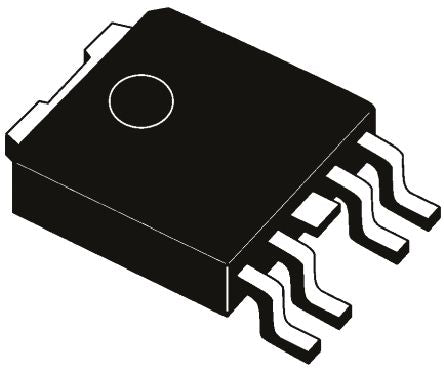

STMicroelectronics LDFPT-TR, LDO Regulator, 1A Adjustable, 0.8 → 12 V, ±1.5% 5-Pin, PPAK [LDFPT-TR]; 168-8707
0₫
Mã kho: 1688707
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 0.8 → 12 V |
| Output Type | Adjustable |
| Package Type | PPAK |
| Maximum Output Current | 1A |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.6 V |
| Maximum Input Voltage | 16 V |
| Pin Count | 5 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 800µA |
| Accuracy | ±1.5% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Width | 6.2mm |
| Dimensions | 6.6 x 6.2 x 2.4mm |
| Height | 2.4mm |
| Line Regulation | 0.04 %/V |
| Length | 6.6mm |
| Reference Voltage | 0.8V |
| Load Regulation | 0.6 %/A |
