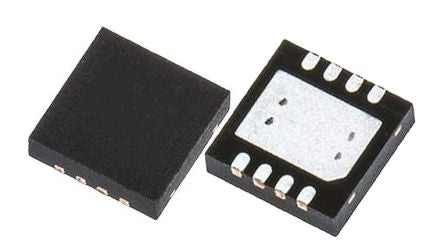

LD56100DPU33R, Linear Voltage Regulator [LD56100DPU33R]; 192-4846
0₫
Mã kho: 1924846
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | 3.3 V |
Maximum Output Current | 1A |
Package Type | DFN |
Output Type | Fixed |
Mounting Type | Surface Mount |
Minimum Input Voltage | 1.8 V |
Maximum Input Voltage | 5.5 V |
Pin Count | 6 |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Number of Outputs | 1 |
Line Regulation | 0.06 %/V |
Dropout Voltage Measurement Current | 0.0416666666666667 |
Length | 1.6mm |
Load Regulation | 6 mV |
Accuracy | 0.01 |
Typical Dropout Voltage @ Current | 155 mV @ 1 A |
Height | 0.45mm |
Dimensions | 1.6 x 1.2 x 0.45mm |
Width | 1.2mm |
Quiescent Current | 155µA |
