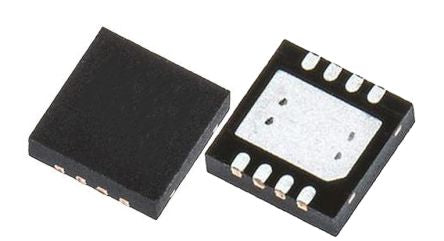

LD56100DPU33R, Linear Voltage Regulator [LD56100DPU33R]; 192-4613
0₫
Mã kho: 1924613
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3.3 V |
| Maximum Output Current | 1A |
| Package Type | DFN |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.8 V |
| Maximum Input Voltage | 5.5 V |
| Pin Count | 6 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Dimensions | 1.6 x 1.2 x 0.45mm |
| Line Regulation | 0.06 %/V |
| Typical Dropout Voltage @ Current | 155 mV @ 1 A |
| Height | 0.45mm |
| Quiescent Current | 155µA |
| Length | 1.6mm |
| Dropout Voltage Measurement Current | 0.0416666666666667 |
| Width | 1.2mm |
| Accuracy | 0.01 |
| Load Regulation | 6 mV |
