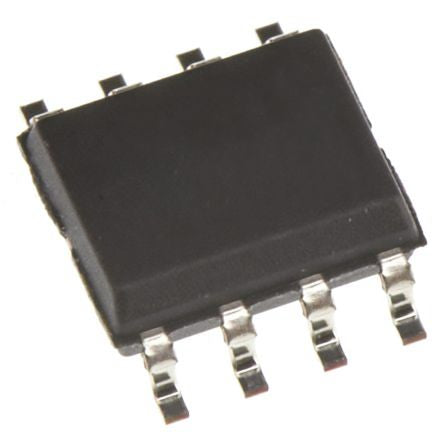

L79L05ACD13TR, Voltage Regulator [L79L05ACD13TR]; 196-1456
0₫
Mã kho: 1961456
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | -5 V |
| Maximum Output Current | 100mA |
| Package Type | SO |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Maximum Input Voltage | -35 V |
| Pin Count | 8 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 2 |
| Polarity | Negative |
| Typical Dropout Voltage @ Current | 1.7V |
| Height | 1.5mm |
| Series | L79L |
| Quiescent Current | 6mA |
| Width | 4mm |
| Dimensions | 5 x 4 x 1.5mm |
| Load Regulation | 60 mV |
| Length | 5mm |
| Line Regulation | 150 mV |
