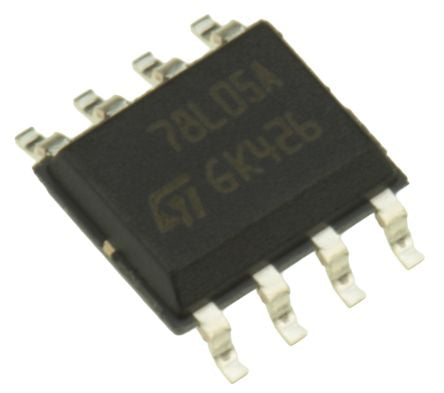

STMicroelectronics L78L05ACD13TR Linear Voltage Regulator, 100mA, 5 V, ±5% 8-Pin, SOIC [L78L05ACD13TR]; 145-9425
0₫
Mã kho: 1459425
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5 V |
| Maximum Output Current | 100mA |
| Package Type | SOIC |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Maximum Input Voltage | 30 V |
| Pin Count | 8 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +150 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Typical Dropout Voltage @ Current | 1.7 V @ 40 mA |
| Width | 4mm |
| Height | 1.65mm |
| Length | 5mm |
| Line Regulation | 150 mV |
| Accuracy | ±5% |
| Dimensions | 5 x 4 x 1.65mm |
| Series | L78Lxx |
| Quiescent Current | 6mA |
| Load Regulation | 60 mV |
