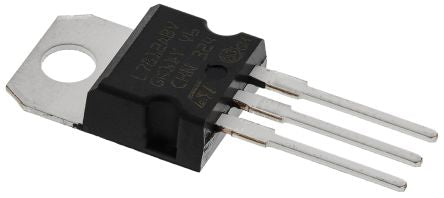

STMicroelectronics L7812ABV Linear Voltage Regulator, 1A, 12 V, 2% 3-Pin, TO-220 [L7812ABV]; 686-9827
0₫
Mã kho: 6869827
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12 V |
| Maximum Output Current | 1A |
| Package Type | TO-220 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Maximum Input Voltage | 35 V |
| Pin Count | 3 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Quiescent Current | 4.4mA |
| Accuracy | 0.02 |
| Load Regulation | 100 mV |
| Length | 10.4mm |
| Width | 4.6mm |
| Typical Dropout Voltage @ Current | 2 V @ 1 A |
| Line Regulation | 120 mV |
| Height | 9.15mm |
| Series | L78xx |
